HP ScanJet Adapter
Hewlett-Packard Scanner Interface Adapter

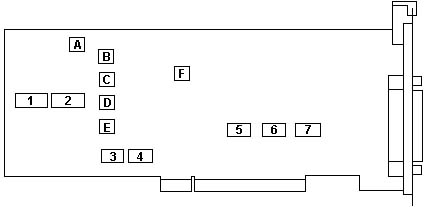

A-E TI 013FF
F TI 019FF
1, 2 M5M5256BFP -12L
3, 4 NS? M9018 1820-5002
5-7 NS? M9018 1820-5241
Blame Peter
It's the old parallel adapter for the HP ScanJet Plus GS-scanner. You
could use the card as additional parallel port - for a ZIP drive or external
PP CD-ROM probably ... just in case you don't have the appropriate scanner.
AdapterId 0601Fh "Hewlett-Packard
Scanner Interface Adapter"
I/O Port Location
This adapter requires eight I/O ports. There are four choices
for the location of these ports
<278-27F (PARALLEL_3)>,
268-26F, 258-25F, 248-24FH
Memory Location
This adapter requires 16 Kbytes of memory space from the
adapter ROM area. There are eight memory locations that can be selected.
<Segment C400>, CC00,
DC00, D800, D400, D000, C000, C800
HP ScanJet IIp Scanner (PC / MCA)
http://www.hp.com/cposupport/prodhome/sjiippm.html
SOLUTION: The file is on the installation disk #1 of the HP DeskScan
II or HP PictureScan software. The file name for the HP ScanJet Plus is
@601f.adf. For the HP ScanJet IIc and
HP ScanJet IIp scanners the file is @621f.adf for the ROM addressing
card (C1753). The file name for the HP ScanJet IIcx, HP ScanJet 3p, HP
ScanJet 3c, HP ScanJet 4c, and HP
ScanJet 4p Input/Output (I/O) addressing card (C2503) is @631f.adf.
SUMMARY: The ADF file is an Adapter Description File for the Micro
Channel Configuration program. It is used as a reference for setting the
ROM address for the HP ScanJet Plus, IIc and IIp card, and the I/O address
for the HP ScanJet IIcx, 3c, 3p, 4c and 4p card.
|
