C. Smith came up with the actual SSP manual. Shazaam!

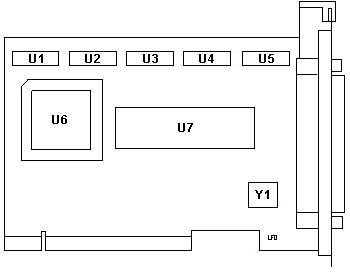

@60E5.adf  Boca SSP

Boca Research Dual Async/Parallel Adapter 2
   Pinout for 37 Pin DB37
   ADF Sections for SSP
Boca Research Bidirectional Parallel Adapter Short
Search for a Killer

U1-U3 MC1489A
U4-U5 MC1488
U6 KS82C452
U7 M60013-1006SP
Y1 18.432 MHz Xtal



37 PIN CONNECTOR PINOUTS (ID = 60E5)
From Carlyle F. Smith
  This is from the original Boca.MCA SSP Installation Guide for the ID=60E5 adapter.
Notes:
o 1st column is the 37 D-shell pins
o 2nd column is the 25-pin female D-shell Parallel and  25-pin male D-shell Serial A and Serial B pins

==========================
Pin Pin Connector and Designation
--- --- -------------------------
 1 P18  Signal ground (Actually pins 18-25 are all grounded)
 2   8  Par. Data Bit 6
 3   6  Par. Data Bit 4
 4   4  Par. Data Bit 2
 5   2  Par. Data Bit 0
 6  16  Par. -INIT (Initialize Printer)
 7 P25  Signal ground
 8  15  Par. -ERR  (Error)
 9  11  Par. BUSY  (Busy)
10  10  Par. -ACK  (Acknowledge)
11   8  B -DCD  (Rec'd line Signal Det.)
12  20  B -DTR  (Data Terminal Ready)
13   5  B -CTS  (Clear to Send)
14   4  B -RTS  (Request to Send)
15  A7  Signal ground
16   6  A -DSR  (Data Set Ready)
17  22  A -RI   (Ring Indicator)
18  20  A -DTR  (Data Terminal Ready)
19   4  A -RTS  (Ready to Send)
20   9  Par. Data Bit 7
21   7  Par. Data Bit 5
22   5  Par. Data Bit 3
23   3  Par. Data Bit 1
24   1  Par. -STB  (Strobe)
25  14  Par. -AFD  (Auto Feed)
26  17  Par. -SLIN (Select Input)
27  13  Par. SLCT  (Select)
28  12  Par. PAPE  (Paper End)
29  B7  Signal Ground
30  22  B -RI   (Ring Indicator)
31   6  B -DSR  (Data Set Ready)
32   3  B -RxD  (Received Data)
33   2  B -TxD  (Transmitted Data)
34   8  A -DCD  (Rec'd Line Signal Det.)
35   3  A -RxD  (Rec'd Data)
36   5  A -CTS  (Clear to Send)
37   2  A -TxD  (Transmitted Data)
======================================
37-pin D-shell pin assignments to 25-pin connectors:

1  2  3  4  5  6  7  8  9 10 11 12 13 14 15 16 17 18 19
SG P  P  P  P  P SG  P  P  P  B  B  B  B SG  A  A  A  A

 P  P  P  P  P  P  P  P  P SG  B  B  B  B  A  A  A  A
20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37

Actually, presented this way, The wire bundling makes some sense, as it should.

Serial Port A
   This serial port may be configured at any one of 8 standard base I/O port addresses (SERIAL_1 through SERIAL_8) , or it may be disabled. The standard selections for interrupt levels in the PS/2 family is for SERIAL_1 to be set to INT 4 and for SERIAL_2 through SERIAL_8 to be set to INT 3. The BOCAMCA.SSP supports the microchannel shared interrupt scheme.  This means that more than one serial port may be configured to use the same interrupt level.
   <SERIAL_1     INT 4>  Whole lotta choices

Serial Port B
   <SERIAL_1     INT 4>  Whole lotta choices

Parallel Port
   This is an IBM PS/2 compatible bidirectional parallel port.  It may be configured at any one of the three standard parallel port base I/O addresses (PARALLEL_1 through PARALLEL_3) or it may be disabled.  All parallel ports generate interrupts on INT 7    NOTE: IBM LPT order!
   <PARALLEL_1   INT 7> (03bch-03bf),  PARALLEL_2   INT 7 (0378h-037b), PARALLEL_3   INT 7 (0278h-027b). DISABLED

Parallel Port Mode
   The BOCA.MCA parallel port, like the systemboard parallel port, has the capability of operating in either bidirectional or unidirectional modes. The bidirectional capability is a new feature of the PS/2 family and will only be used by software specifically written to take advantage of it. The default for this setting is unidirectional mode to ensure backwards compatibility with PC software.
   <Unidirectional>, Bidirectional

The POS Difference
   After the Wiz pointed out the wrong adfs were causing trouble, I looked at the adfs for differences.

Parallel Connector Item

Port	Short	Long
PARALLEL_1	pos[0]=XX11101Xb	pos[0]=XXX1101Xb
PARALLEL_2	pos[0]=XX11010Xb	pos[0]=XXX1010Xb
PARALLEL_3	pos[0]=XX10010Xb	pos[0]=XXX0010Xb

  Hopefully, Tim Clarke will tell all of us what the significance of 2 'x's vs. 3 'x's. If I remeber, X means that the system doesn't care what the digit is.

Tell ME what the change from X to 1 makes.
