Sound Blaster
@5084.ADF
- Creative Labs, Inc. - SOUND BLASTER/MCV
@5103.ADF -
Creative Labs SOUND BLASTER PRO MCV CT5330
sbpmwu.exe
Win 3.1 drivers for SB/SB Pro MCV
sbpmdu.exe
DOS Drivers for SB/SB Pro MCV
NT support- Creative's site sez
"NO" to NT 3.51 and NT 4.0
OS/2 No drivers at Creative Labs
Link to Creative Lab's Download site HERE
Use to find SB utilities

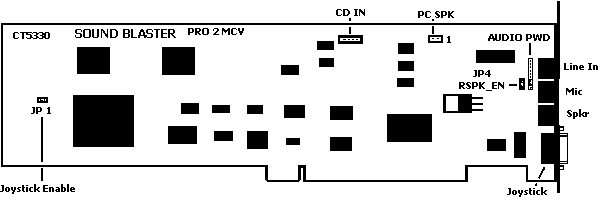

SBPro MCV

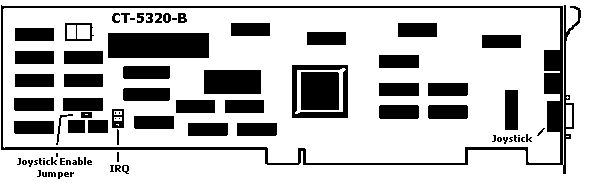

SB MCV (CT5320)
>Is the MCA Creative Soundblaster (Pro) a useble
soundcard, MIDI W95/98 e.g.?
From Peter
Yes - from the principle.
However the card technically bases
on the old 8-bit ISA (!!) card, roughly conversed to MCA and originally
designed for Stage I and II MCA (80286 and low-end 80386 machines). They
tend to cause bus timeout errors on faster machines ... and since you mentioned
Win98 (which won't work properly on most PS/2) these will be your prefered
machines I guess.
Best recommendation: do yourself
a favour, forget the SB MCV and buy a ChipChat or SoundPiper card. They
have been designed and tested to work with the better PS/2.
Hardware General Info
|
General Hardware
|
SB MCV (CT5320)
|
SB Pro MCV (CT5330)
|
|
General
|
|
|
|
FM Synthesis
|
Yes
|
Yes
|
|
Digitized Sound
|
Yes
|
Yes
|
|
Stereo Power Amplifier
|
No
|
Yes
|
|
Digital/Analog Mixer
|
No
|
Yes
|
|
Plug and Play
|
No
|
No
|
|
CD-ROM Interface
|
None
|
None
|
|
Hardware Settings
|
|
|
|
Interrupt (IRQ)
|
3, 5, 7
|
3, 5, 7
|
|
8-bit DMA Channel
|
1
|
0, 1, 3
|
|
16-bit DMA Channel
|
N/A
|
N/A
|
|
Joystick I/O Address
|
200
|
200
|
|
Audio I/O Address
|
210, 220, 230,
240, 250, 260
|
220, 240
|
|
FM Synthesizer I/O Address
|
388
|
388
|
|
External Connectors
|
|
|
|
Mic-In
|
X
|
X
|
|
Line In
|
X
|
X
|
|
Line-Out
|
|
X
|
|
Speaker Out
|
|
X
|
|
Game/Joystick Port
|
X
|
X
|
|
PC Speaker
|
|
X
|
|
CD-ROM Audio-In (SB Audio Socket)
|
|
X
|
Audio
